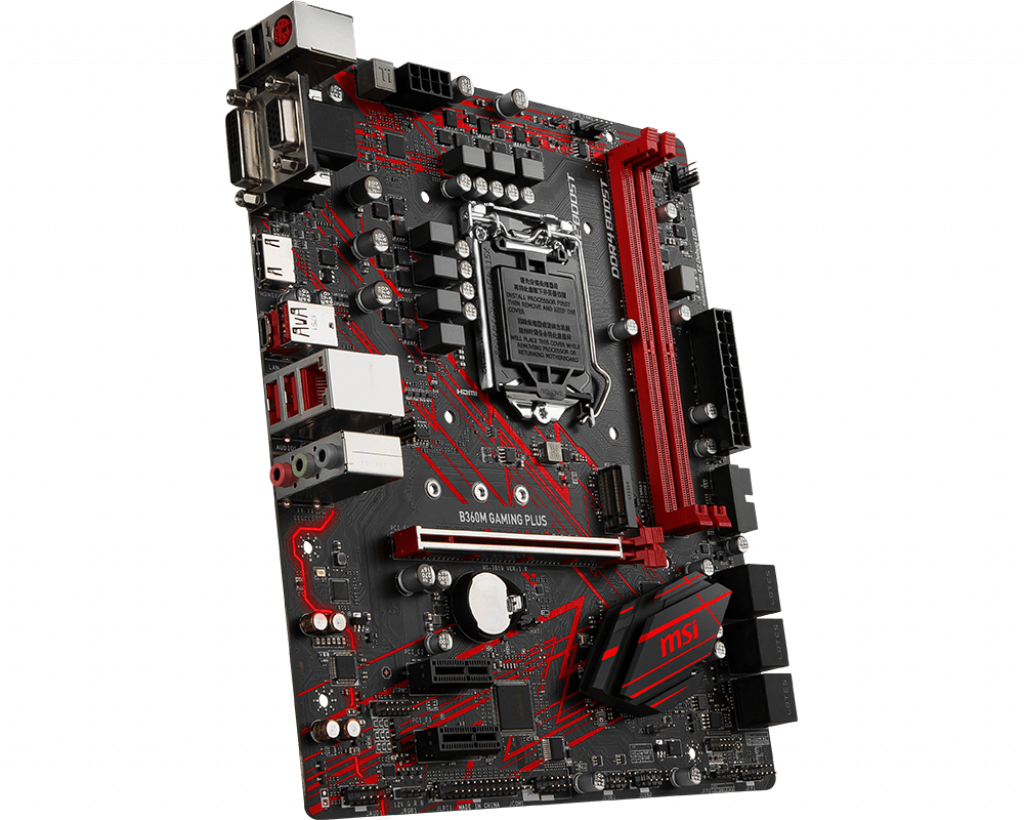

Mainboard MSI B360M Gaming Plus

-6% 2,350,000₫ 2,499,000₫

Mô tả

Thông tin sản phẩm

Mã hàng: MAMB920
Bảo hành: 36 Tháng
Hãng sản xuất: MSI

Mô tả sản phẩm

CPU Support Supports 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors
CPU Socket LGA 1151
Chipset Intel® B360 Chipset Graphics Interface 1 x PCI-E 3.0 x16 slot
Display Interface HDMI, DVI-D, VGA - Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR4 up to 2666MHz
Expansion Slots 2 x PCI-E x1 slots
Storage 1 x Turbo M.2 slot, supports Intel® OptaneTM Technology 6 x SATA 6Gb/s
USB ports 6 x USB 3.1 (Gen1) + 6 x USB 2.0
LAN Intel® I219-V Gigabit LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost
Form Factor mATX

PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

  • 2 x DDR4 memory slots, support up to 32GB
    • Supports DDR4 2666/ 2400/ 2133 MHz1
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  • Please refer to www.msi.com for more information on compatible memory

SLOTS

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hzz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

STORAGE

Intel® B360 Chipset

  • 6 x SATA 6Gb/s ports1
  • 1 x M.2 slots (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  • The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
  • Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Dual Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel I219-V Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 2 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 1 x RGB LED connector
  • 1 x Parallel port connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. VGA
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Port
  6. DVI-D
  7. HDMI
  8. USB 3.1 Gen1 Type A + C
  9. USB 3.1 Gen1

MSI B360M GAMING PLUS back panel ports

DIMENSIONS

  • 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
  • m-ATX Form Factor

MOUNTING

6 mounting holes
