Mainboard MSI X399 Creation

-5% 11,990,000₫ 12,599,000₫

Mô tả


Thông tin sản phẩm

Mã hàng: MSI X399 CREATION
Bảo hành: 36 Tháng
Hãng sản xuất: MSI

Mô tả sản phẩm

Model Name MEG X399 CREATION
CPU Support Supports AMD® Ryzen™ THREADRIPPER™ Series Processors CPU Socket SocketTR4
Chipset AMD® X399 Chipset
Graphics Interface 4 x PCI-E 3.0 x16 slot, Supports 3-way NVIDIA® SLI™ / 3-way AMD® CrossFire™
Memory Support 8 DIMMs, Quad Channel DDR4-3600+(OC)
Expansion Slots 1 x PCI-E x1 slot
Storage 3 x Turbo M.2 slots 8 x SATA 6Gb/s
USB ports 1 x USB 3.1 Gen 2 front Type C 14 x USB 3.1 Gen 1 (1 x rear Type C) 4 x USB 2.0
LAN 2 x Intel® I211 Gigabit LAN, Intel® WIFI AC 9260
Audio 8-Channel(7.1) HD Audio with Audio Boost 4
Form Factor E-ATX

PROCESSOR

Supports 1st and 2nd Gen AMD® RYZEN™ THREADRIPPER™ Series Processors for SocketTR4

CHIPSET

AMD® X399 Chipset

MEMORY

  • 8 x DDR4 memory slots, support up to 128GB
    • Supports DDR4 3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400/ 2133 MHz
  • Quad channel memory architecture

SLOTS

  • 4 x PCIe 3.0 x16 slots
  • 1 x PCIe 2.0 x1 slot

MULTI-GPU

  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMD® CrossFire™ Technology

STORAGE

AMD® X399 Chipset

  • 8 x SATA 6Gb/s ports

AMD® CPU

  • 3 x M.2 ports (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s
    • M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices
    • M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

RAID

AMD® X399 Chipset

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

ASMedia® ASM3142 Chipset

  • 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port available through the internal USB connector

AMD® X399 Chipset

  • 1x USB 3.1 Gen1 (SuperSpeed USB) Type-A port on the back panel
  • 1x USB 3.1 Gen1 (SuperSpeed USB) Type-C port on the back panel
  • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 4x USB 2.0 (High-speed USB) ports available through the internal USB connectors

AMD® CPU

  • 8x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC1220 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 2 x Intel® I211AT Gigabit LAN controllers

WIFI & BLUETOOTH

  • Intel® Wireless-AC 9260 card
    • Supports Wi-Fi 802.11 ac, 2x2, Dual Band, (2.4GHz, 5GHz) up to 1.73 Gbps speed.
    • Supports Bluetooth® 5

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connector
  • 1x flat 4-pin ATX 12V power connector
  • 8x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 1x USB 3.1 Gen2 Type-C port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 5x 4-pin system fan connectors
  • 3x 4-pin extend fan connectors
  • 2x Front panel connectors
  • 1x Front panel audio connector
  • 2x 5050 RGB LED strip 12V connector (JRGB1~2)
  • 1x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
  • 1x CORSAIR connector (JCORSAIR1)
  • 1x TPM module connector
  • 3x 2-pin Thermal Sensors connectors

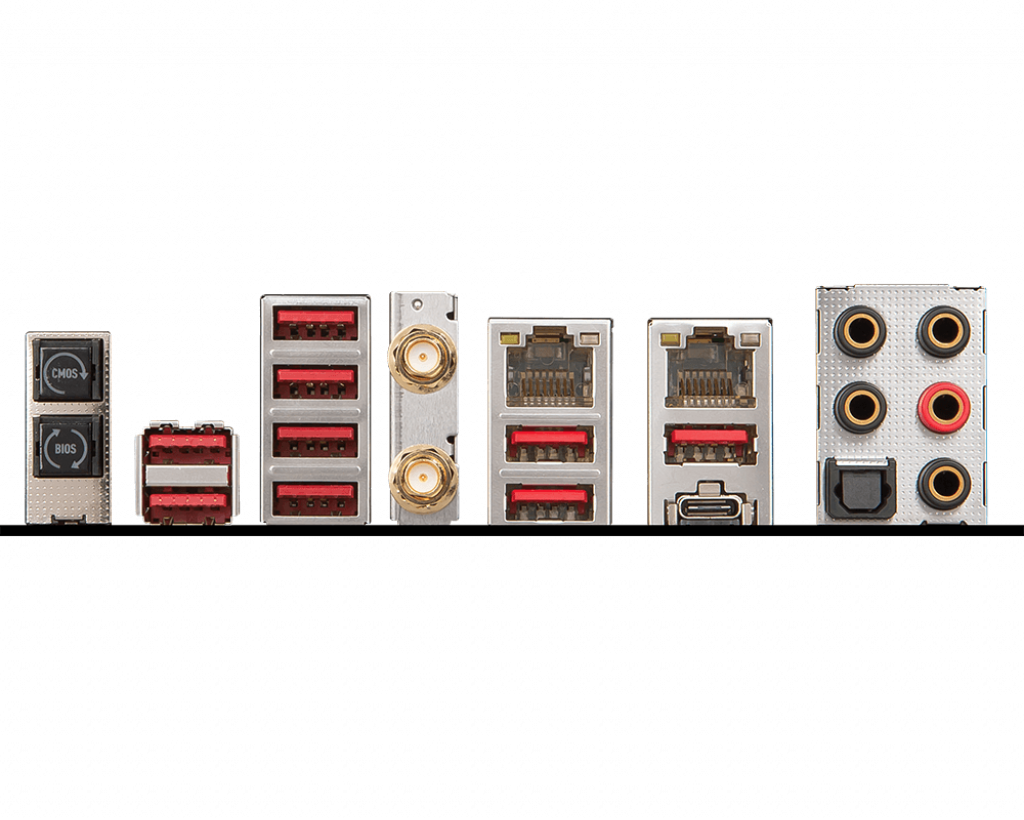

BACK PANEL PORTS

  1. Clear CMOS Button
  2. USB 3.1 Gen1 Ports
  3. USB 3.1 Gen1 Ports
  4. Intel® WiFi/ Bluetooth Module
  5. Dual Intel® LAN Ports
  6. HD Audio Connectors
  7. BIOS FLASHBACK+
  8. USB 3.1 Gen1 Ports
  9. AMD Turbo USB 3.1 Gen 1 Type A + C
  10. Optical S/PDIF-Out

MSI meg x399 creation back panel ports

DIMENSIONS

  • 12 in. x 10.7 in. (30.4 cm x 27.2 cm)
  • E-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit

BOX CONTENT
